So my goal for today was to get the seat mounted and what a pain! The seat pan was a little to long so I had to cut it down quite a bit. I was hoping to find a place with a water jet, or plasma cutter but no dice. So I got out the old jig saw slowly got it cut, but slowly is the key word.

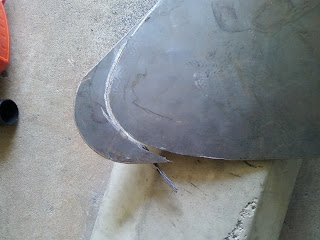

I had to free hand the chalk line, the cutting was slow and steady, the pan is thicker then it looks, They told me 10 gauge when I bought the metal, its starting to get there.
Here it is all cut...
Just needs a little grinding.
The mount also needed a little altering to get the seat pan to fit like it should.
Here's the pan with the mount installed. It took a while to drill and when I say while I really mean forever. I think the carriage bolts will work out nice when I get the seat upholstered, they'll be easier to hide and wont spin when I tighten the nuts down.
Here's the pan ready for me to tack the mount into place.
Another shot of the pan ready to weld.
This is shortly after I welded the seat mounting bracket into place. I put the tank back on, (yes I did take it off for the welding) and now I need to order the seat springs I think that 3 to 4 inch springs should work out great, so let the search begin. They have some on e-bay that pretty reasonable. (The above is the biggest picture in this post, click it to see.)
